3/64" wire cable mesh for bird aviary mesh, hand-woven metal mesh
Product Type: hand-woven
SKU: HY1220
Please confirm with us before ordering. Unconfirmed orders will not be processed.
Share
Guaranteed Safe Checkout
Stainless Steel Rope Mesh Details :
|
Place of Origin: China (Mainland) Brand Name: Hengyi Type: Steel Cable Mesh |
Material: AISI 304/316 Steel |
Technology: Hand woven |
3/64“ stainless steel wire rope mesh means a rope diameter of 3/64 inches, commonly used in bird aviaries and small animals enclosure.
3/64“ stainless steel wire rope mesh common mesh sizes include: 0.8"×0.8", 1"×1", 1.2"×1.2",1.5"×1.5", 2"×2", 2.4"×2.4", 3"×3", 3.6"×3.6", 4"×4"......
3/64“ stainless steel wire rope mesh used for bird aviary protection system:
● Pure hand-woven
● Light weight but strong and durable
● Tensile strength, breaking strong
● Flexible, soft, corrosion-resistant, no rust, maintenance-free, long service life
● Beautiful, good sight, pollution-free, environmentally friendly
● Wide range of applications, can be installed without restrictions on the shape
● Suitable for all kinds of environments
● Customized products
Material:
● Hand-woven stainless steel wire rope mesh choose high quality stainless steel wire rope, material have AISI304 and AISI316;
● In general, the material AISI 304 is the main material, can meet the needs of most areas, and the AISI316 material mainly used for wet environment, like seaside.
Product applications:
The application of 3/64"stainless steel wire cable mesh is very wide, due to it has Strong tensile strength and Small mesh aperture characteristic, mainly applies in the small bird aviary mesh, small animal fence mesh and decorative building protective mesh.
Stainless steel cable mesh is including two types:
1> Stainless steel cable woven mesh (stainless steel sleeveless wire rope mesh)

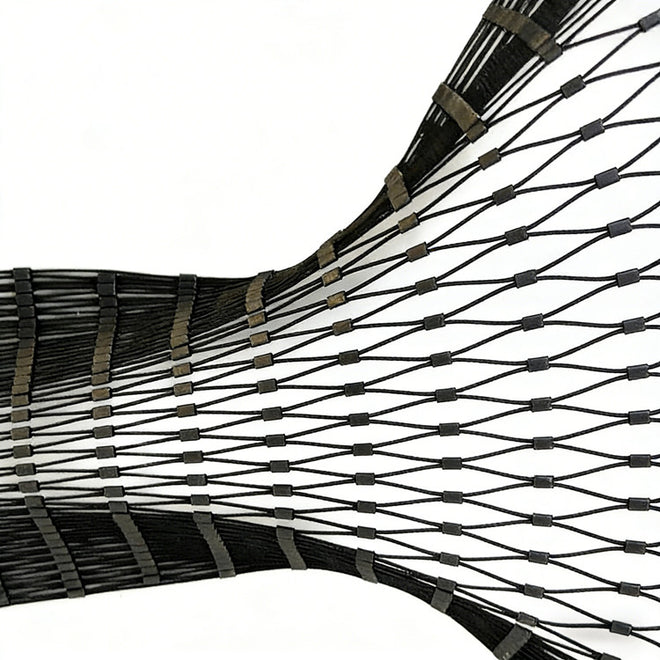

2>Stainless steel cable ferrule mesh (stainless steel sleeved wire rope mesh).
Specifications of Stainless steel cable woven mesh:
| Rope diameter | 3/64"(1.2mm) | 1/16"(1.6mm) | 5/64"(2.0mm) | 3/32"(2.4mm) | 1/8"(3.2mm) | 5/32"(4.0mm) |
| Mesh aperture | --- | --- | --- | --- | --- | --- |

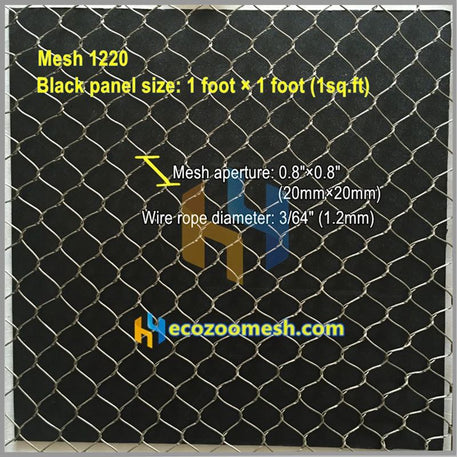

| 0.8"×0.8" | HY1220 | --- | --- | --- | --- | --- |

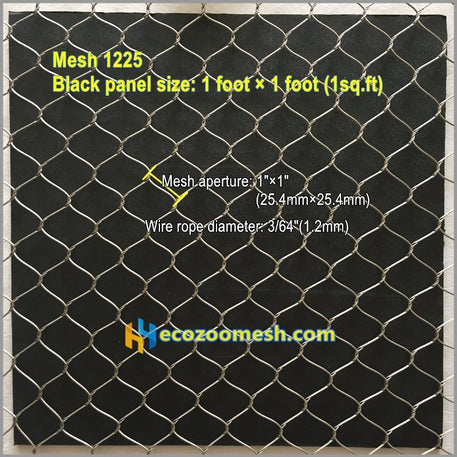

| 1"×1" | HY1225 | HY1625 | --- | --- | --- | --- |

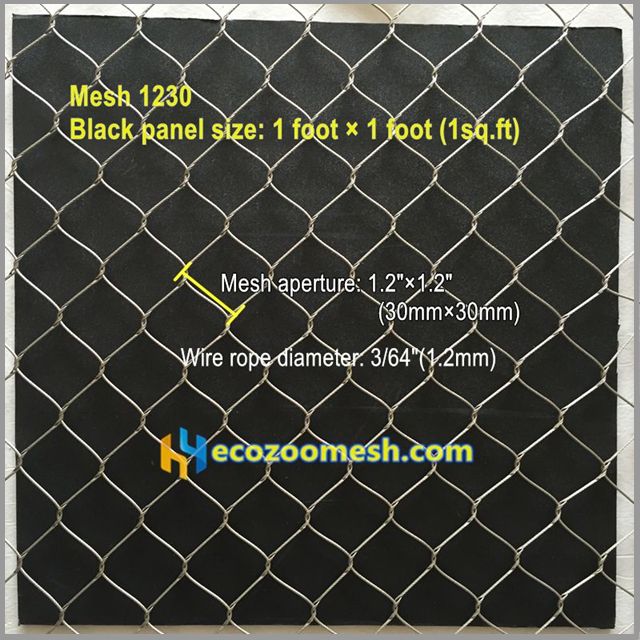

| 1.2"×1.2" | HY1230 | HY1630 | --- | --- | --- | --- |

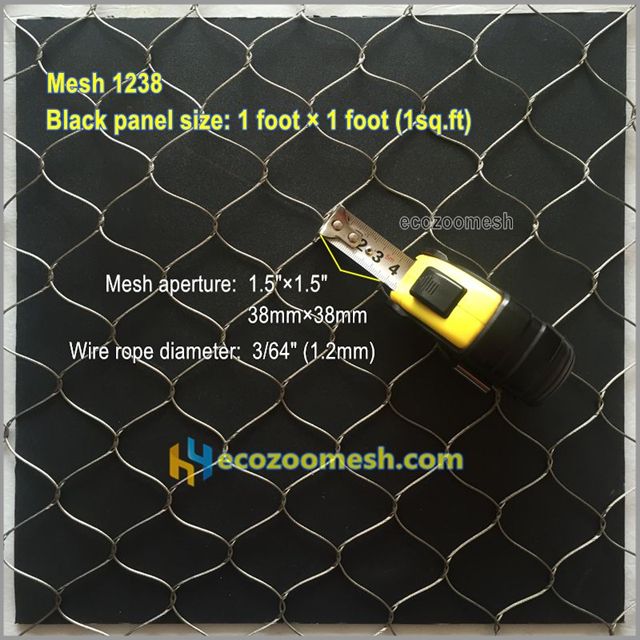

| 1.5"×1.5" | HY1238 | HY1638 | HY2038 | HY2438 | --- | --- |

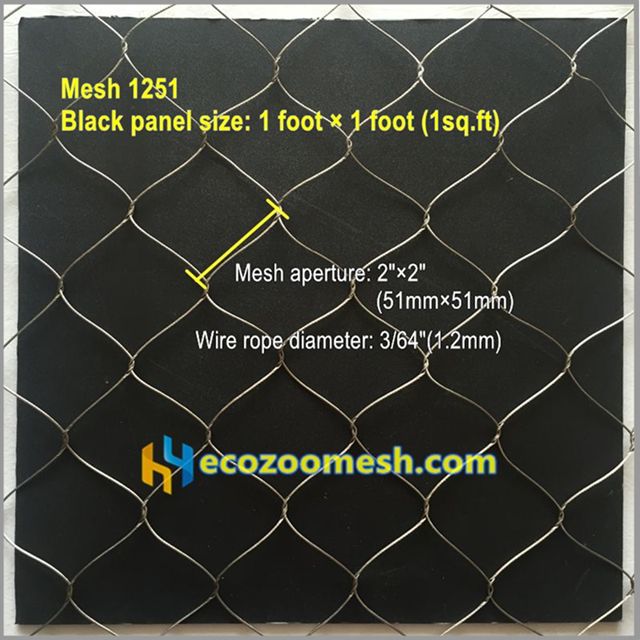

| 2"×2" | HY1251 | HY1651 | HY2051 | HY2451 | HY3251 | --- |

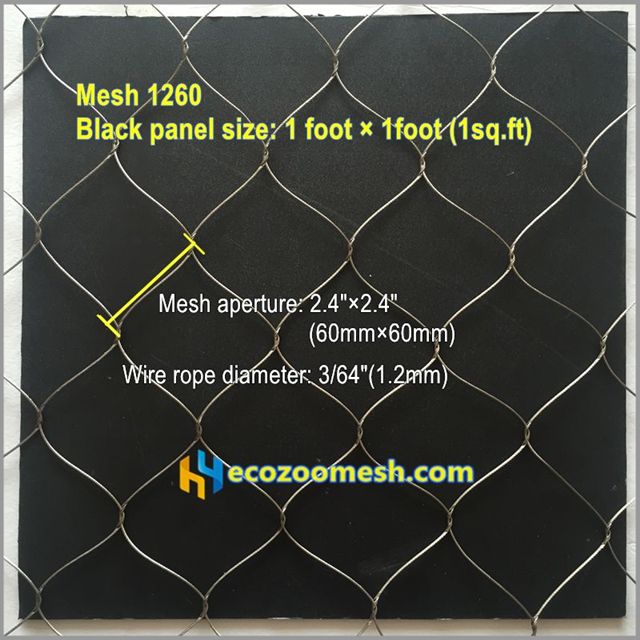

| 2.4"×2.4" | HY1260 | HY1660 | HY2060 | HY2460 | HY3260 | --- |

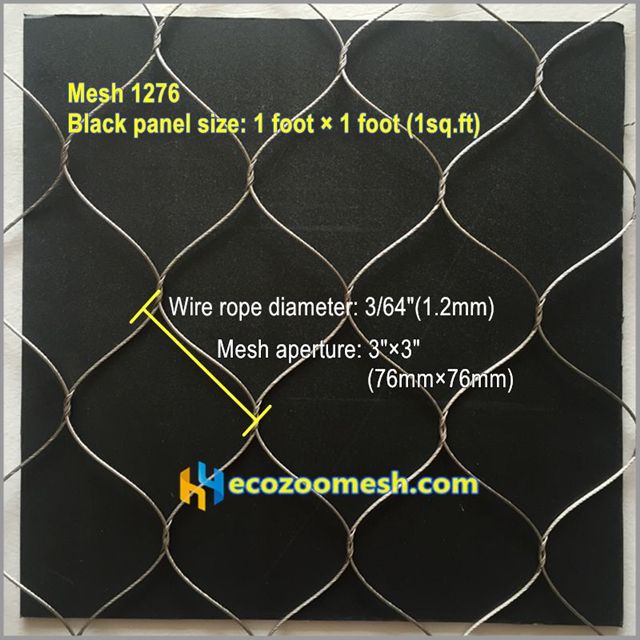

| 3"×3" | HY1276 | HY1676 | HY2076 | HY2476 | HY3276 | HY4076 |
| 3.6"×3.6" | HY1290 | HY1690 | HY2090 | HY2490 | HY3290 | HY4090 |

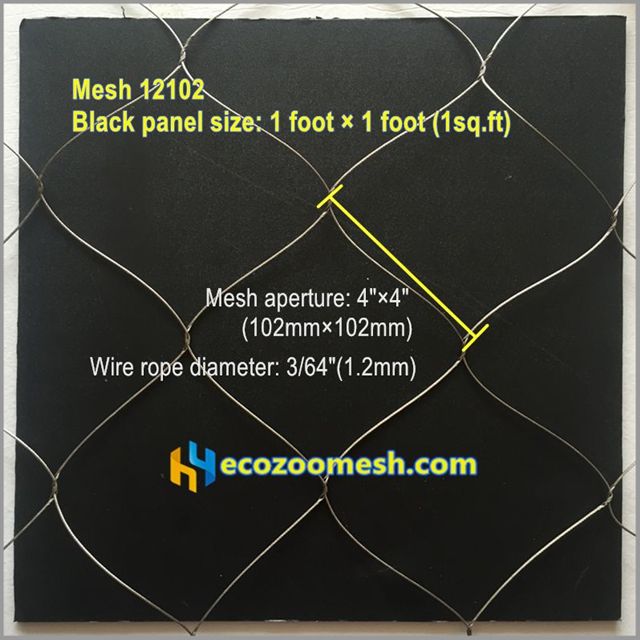

| 4"×4" | HY12102 | HY16102 | HY20102 | HY24102 | HY32102 | HY40102 |
Specifications of Stainless steel cable ferrule mesh:
| Rope diameter | 3/64"(1.2mm) | 1/16"(1.6mm) | 5/64"(2.0mm) | 3/32"(2.4mm) | 1/8"(3.2mm) | 5/32"(4.0mm) |
| Mesh aperture(mm) | --- | --- | --- | --- | --- | --- |
| 20×35 | HYF1220 | --- | --- | --- | --- | --- |
| 30×52 | HYF1230 | HYF1630 | --- | --- | --- | --- |
| 40×69 | HYF1240 | HYF1640 | --- | --- | --- | --- |
| 50×87 | HYF1250 | HYF1650 | HYF2050 | --- | --- | --- |
| 60×104 | HYF1260 | HYF1660 | HYF2060 | HYF2460 | HYF3260 | HYF4060 |
| 80×139 | HYF1280 | HYF1680 | HYF2080 | HYF2480 | HYF3280 | HYF4080 |
| 100×173 | HYF12100 | HYF16100 | HYF20100 | HYF24100 | HYF32100 | HYF40100 |
| 120×208 | HYF12120 | HYF16120 | HYF20120 | HYF24120 | HYF32120 | HYF40120 |
| 150×260 | HYF12150 | HYF16150 | HYF20150 | HYF24150 | HYF32150 | HYF40150 |
It is always our pursuit to provide perfect service!
1. Contact us. We will confirm the raw materials with you according to the application environment. 304 stainless steel is suitable for most cases; 316 stainless steel is better in corrosion-resistant and suitable for oceanic climate.
2. We will confirm the specifications and sizes and give you the most reasonable proposal according to the application purpose.
3. Our salespersons will confirm with you the prices, delivery date, and shipment method, etc.
4. Before placing an order, you are suggested to request a sample of the selected specification. The sample is free and we guarantee the final product is consistent with this sample.
5. Confirm the order and make the down payment.
6. We will produce with a plan.
7. You can come to inspect the products after production is completed; then we will demand the balance and arrange shipment according to your requirement.
8. 7*24 after-sales consultation.
9. Regular post-sales contacts. Your suggestions are welcome and will be helpful for us to enhance our products and services.
Flexible Transportation
The company of express can be chosed like: FedEx, DHL, TNT, or UPS. We also accept the freight collect.Our nearest sea port: XINGANG PORT, TIANJIN, CHINAOur nearest air port: BEIJING, CHINA
