5/64" hand-woven stainless steel wire rope mesh & zoo eclosure netting
Product Type: hand-woven
SKU: HY2038
Please confirm with us before ordering. Unconfirmed orders will not be processed.
Share
Guaranteed Safe Checkout
Hand-woven stainless steel wire rope mesh in 5/64" cable
5/64" wire rope is a medium-gauge wire rope suitable for large birds, medium to large monkeys, and carnivorous animals such as wolves and foxes.
Applications:
- Walkin birds aviary/ aviary mesh/ bird park fence/ parrots aviary mesh
- Monkey enclosure/ gibbon mesh fence/ monkey tunnel mesh system
- Fox fence mesh/ wolve exhibit fence/ coyote exhibit mesh/ spotted hyena habitat enclosure mesh
Wire Rope Mesh For Protection System:
- Pure hand-woven
- Light weight but strong and durable
- Tensile strength, breaking strong
- Flexible, soft, corrosion-resistant, no rust, maintenance-free, long service life
- Beautiful, good sight, pollution-free, environmentally friendly
- Wide range of applications, can be installed without restrictions on the shape
- Suitable for all kinds of environments
- Customized sizes
Hengyi Metal Ecological Mesh uses high quality stainless steel wire rope, material AISI304 or AISI316, while provides the most competitive factory price.
Stainless steel cable mesh is including two types:
1> Stainless steel cable woven mesh (stainless steel sleeveless wire rope mesh)
2>Stainless steel cable ferrule mesh (stainless steel sleeved wire rope mesh).
Specifications of Stainless steel cable woven mesh:
| Rope diameter | 3/64"(1.2mm) | 1/16"(1.6mm) | 5/64"(2.0mm) | 3/32"(2.4mm) | 1/8"(3.2mm) | 5/32"(4.0mm) |
| Mesh aperture | --- | --- | --- | --- | --- | --- |
| 0.8"×0.8" | HY1220 | --- | --- | --- | --- | --- |
| 1"×1" | HY1225 | HY1625 | --- | --- | --- | --- |
| 1.2"×1.2" | HY1230 | HY1630 | --- | --- | --- | --- |

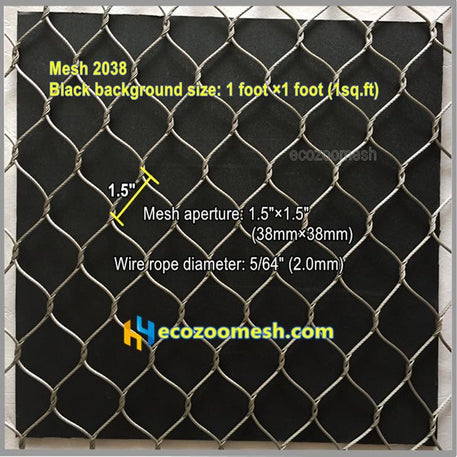

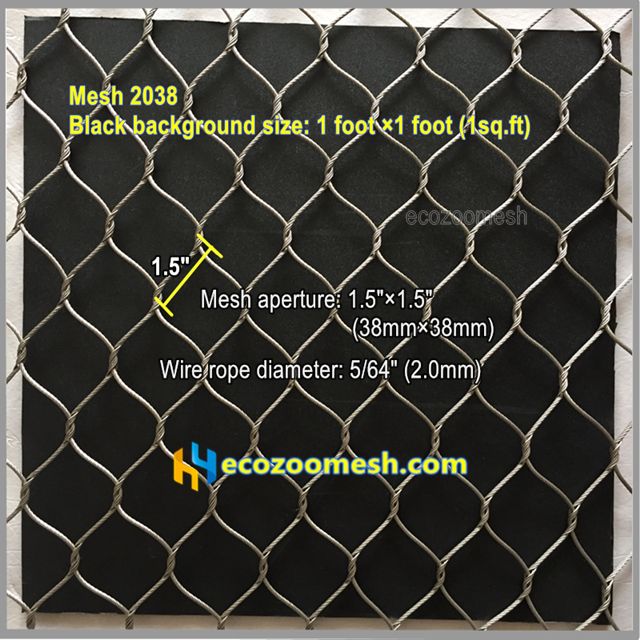

| 1.5"×1.5" | HY1238 | HY1638 | HY2038 | HY2438 | --- | --- |

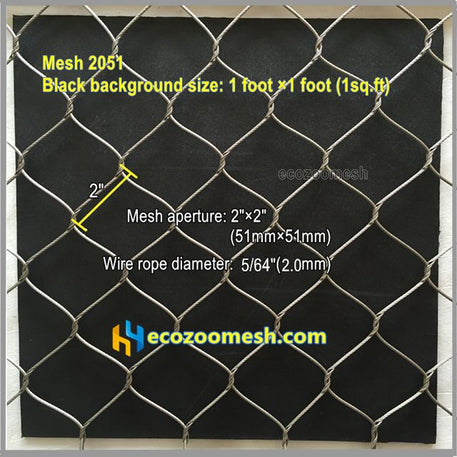

| 2"×2" | HY1251 | HY1651 | HY2051 | HY2451 | HY3251 | --- |

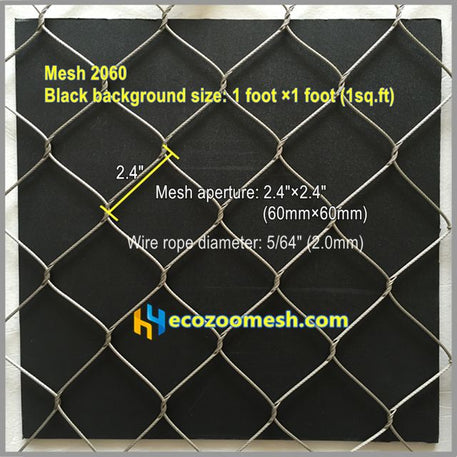

| 2.4"×2.4" | HY1260 | HY1660 | HY2060 | HY2460 | HY3260 | --- |
| 3"×3" | HY1276 | HY1676 | HY2076 | HY2476 | HY3276 | HY4076 |
| 3.6"×3.6" | HY1290 | HY1690 | HY2090 | HY2490 | HY3290 | HY4090 |
| 4"×4" | HY12102 | HY16102 | HY20102 | HY24102 | HY32102 | HY40102 |
Specifications of Stainless steel cable ferrule mesh:
| Rope diameter | 3/64"(1.2mm) | 1/16"(1.6mm) | 5/64"(2.0mm) | 3/32"(2.4mm) | 1/8"(3.2mm) | 5/32"(4.0mm) |
| Mesh aperture(mm) | --- | --- | --- | --- | --- | --- |
| 20×35 | HYF1220 | --- | --- | --- | --- | --- |
| 30×52 | HYF1230 | HYF1630 | --- | --- | --- | --- |
| 40×69 | HYF1240 | HYF1640 | --- | --- | --- | --- |
| 50×87 | HYF1250 | HYF1650 | HYF2050 | --- | --- | --- |
| 60×104 | HYF1260 | HYF1660 | HYF2060 | HYF2460 | HYF3260 | HYF4060 |
| 80×139 | HYF1280 | HYF1680 | HYF2080 | HYF2480 | HYF3280 | HYF4080 |
| 100×173 | HYF12100 | HYF16100 | HYF20100 | HYF24100 | HYF32100 | HYF40100 |
| 120×208 | HYF12120 | HYF16120 | HYF20120 | HYF24120 | HYF32120 | HYF40120 |
| 150×260 | HYF12150 | HYF16150 | HYF20150 | HYF24150 | HYF32150 | HYF40150 |
It is always our pursuit to provide perfect service!
1. Contact us. We will confirm the raw materials with you according to the application environment. 304 stainless steel is suitable for most cases; 316 stainless steel is better in corrosion-resistant and suitable for oceanic climate.
2. We will confirm the specifications and sizes and give you the most reasonable proposal according to the application purpose.
3. Our salespersons will confirm with you the prices, delivery date, and shipment method, etc.
4. Before placing an order, you are suggested to request a sample of the selected specification. The sample is free and we guarantee the final product is consistent with this sample.
5. Confirm the order and make the down payment.
6. We will produce with a plan.
7. You can come to inspect the products after production is completed; then we will demand the balance and arrange shipment according to your requirement.
8. 7*24 after-sales consultation.
9. Regular post-sales contacts. Your suggestions are welcome and will be helpful for us to enhance our products and services.
